MINI CUBED ICE MAKER TEMPERATURE SENSOR
Cause
The Main PCB is not getting a signal from the Mini cubed Ice Maker sensor.
Solution
Check the wiring at the sensor connection and PCB.
Check the sensor resistance and voltage.
Remember an ERROR CODE will only appear if 0 or 5Vdc is detected at the Main PCB.
DETAILS BELOW:
Example from model LRYKC2606

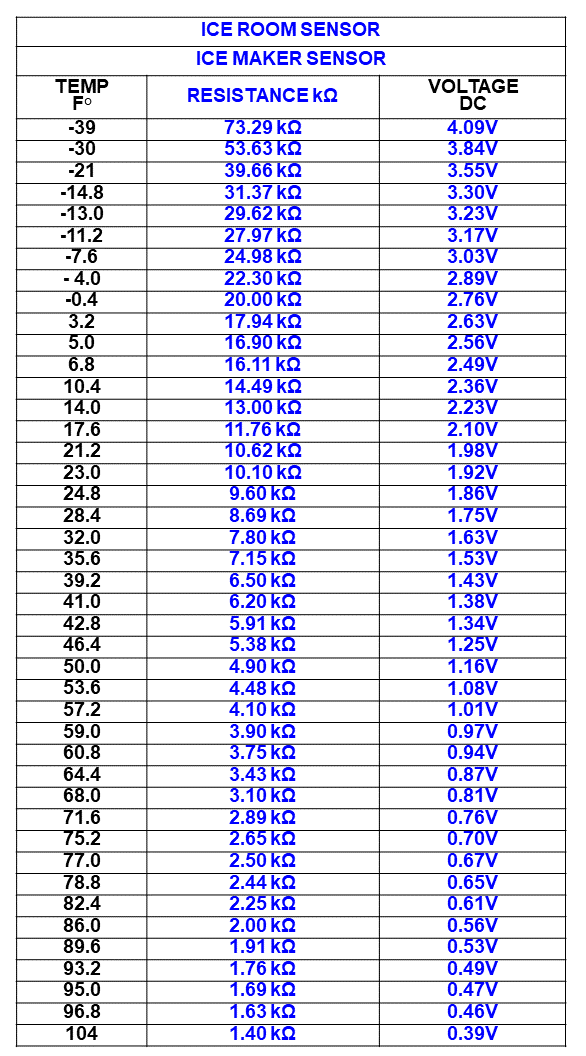

Check from CON 7 pin10 to pin13 for Voltage and resistance using the Ice sensor chart below. If the sensor is open or shorted then replace the ice maker. If PCB is not supplying voltage to the sensor then replace the PCB.
