IC MINI CUBED ICEMAKER MOTOR ERROR
Cause
Loose connection or mini cubed icemaker motor is defective or mini cubed icemaker motor does not receive 12Vdc.
Solution
Check wiring and connections to mini cubed ice maker.
Check voltage to the mini cubed ice maker motor.
DETAILS BELOW:
Example from LRYKC2606

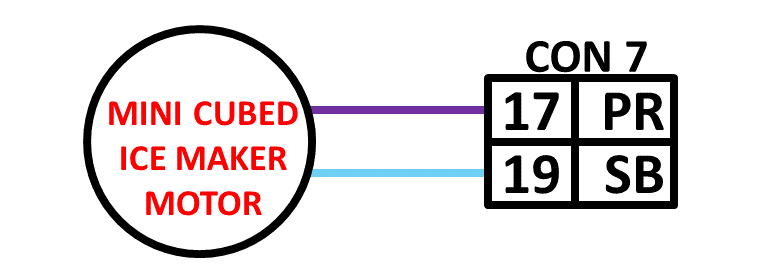

Check from CON 7 pin17 to pin19 for 12Vdc.
If PCB is sending 12Vdc to the motor the PCB is good.
Disconnect CON 7 and check motor resistance for 17 ~ 20 Ohms. If motor is reading open then replace the mini cubed icemaker.
