FAN MOTOR ERROR
Cause
The fan motor is restricted.
Solution

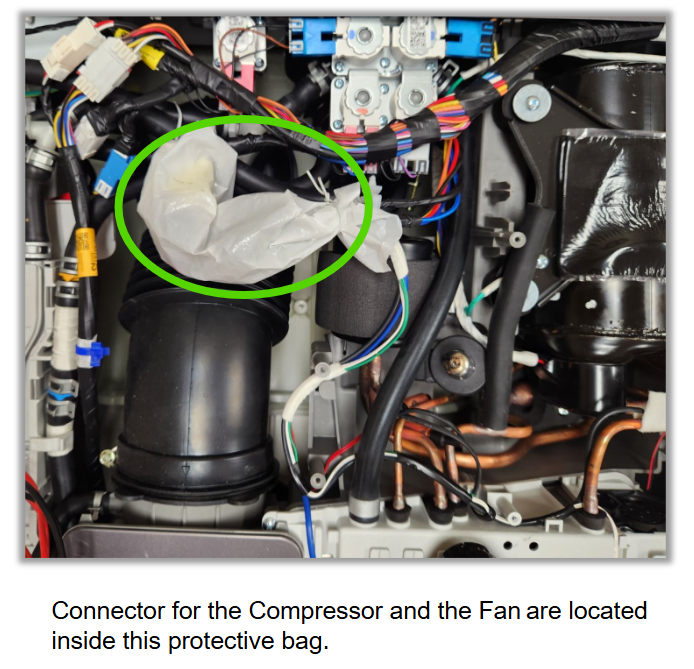

If the connector for fan-motor connection is disconnected, or it has a contact fault. Reconnect the connector and correct the poor connection.
If the harness between the fan motor assembly and controller is open. Replace the harness fan-motor.
DETAILS BELOW:

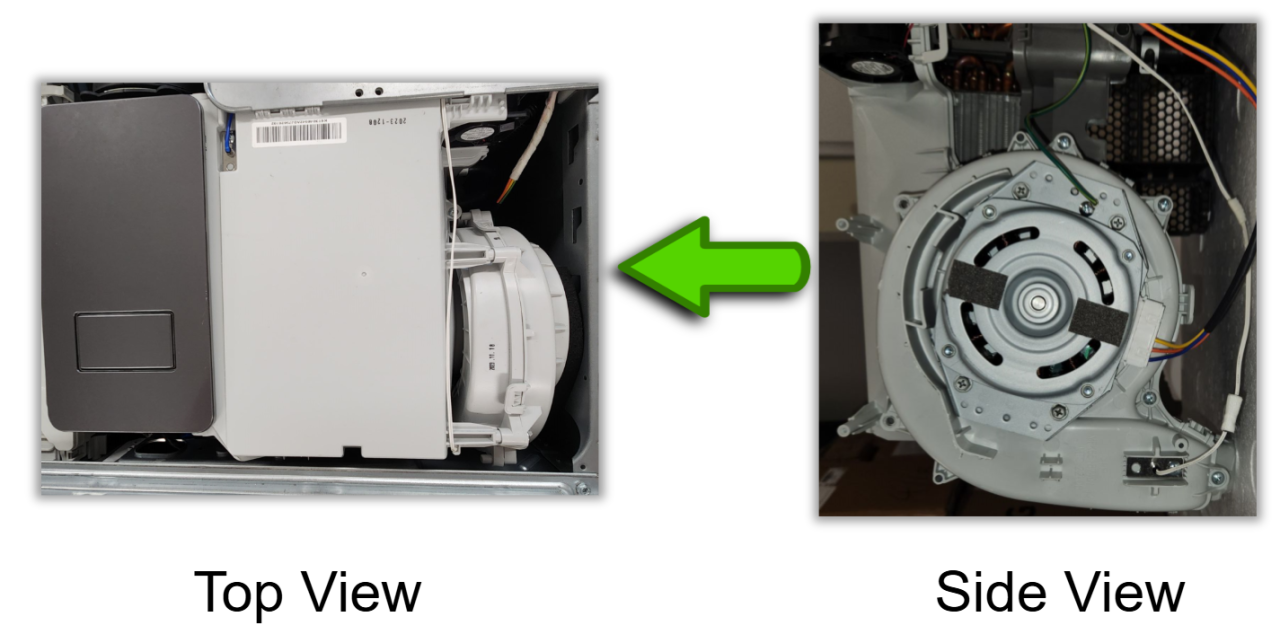

3 phase 24 Vdc Motor Turns on during the dry cycle,
Approximately 11 ohms
for motor windings

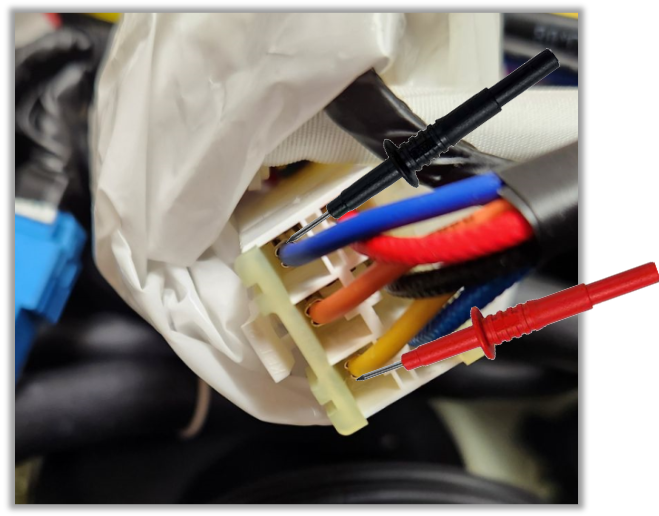

Pin 1 to Pin 2 = 11 ohms ± 10%
Pin 1 to Pin 3 = 11 ohms ± 10%
Pin 2 to Pin 3 = 11 ohms ± 10%
